Product Details:
|
| Part Number: | 294200-0370 | Part Name: | Fuel Suction Control Valve / Scv |
|---|---|---|---|
| Application: | For Denso Diesel Injection Pump | Model: | 4HK1 |
| Quality: | High Quality | Size: | Standard |
| Colour: | Brown | Condition: | 100% New |

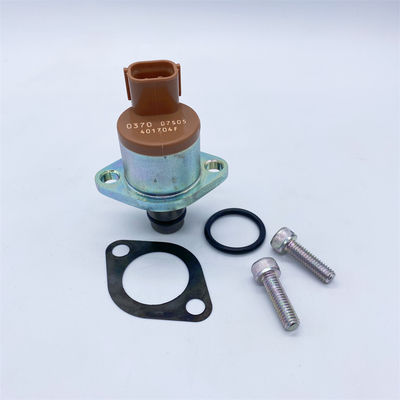

Isuzu 4HK1 294200-0370 Fuel Suction Control Valve Scv Fuel Pressure Regulator
Specification
| Part Number | 294200-0370 |
| Part Name | Fuel Suction Control Valve / Scv |
| Application | For Denso diesel injection pump |
| Model | 4HK1 |
| Colour | Brown |
| Reference Weight | 1KG |
| Quality | High Quality |
| Condition | Brand New |
| Availability | in Stock |
| Port | Guangzhou |
Application
Applies to pumps : 294000-0462, 294000-0490, 294000-0493, 294000-0570, 294000-0571, 294000-0573, 294000-0610, 294000-0612, 294000-0681, 294000-1290, 294009-1221, 294000- 0293, 3310045700, 294000-0294,
Engines : J05E , 4JJ1 , 4HK1 , CA4DL , V3800DI
Compatible Vehicles for 294200-0370:
Isuzu N-Series
HINO
TOYOTA RAV4 HP3
John Deere Tractor S450 Industrial L6
The fuel pressure regulator, also known as the suction control valve or SCV valve, helps maintain the fuel pressure in the electronic fuel injection system. If the fuel injection system requires more fuel pressure, the fuel pressure regulator will release more fuel into the engine. This is critical because this is how the fuel enters the injector. Blocking the passage to the fuel tank completely, the fuel pump will try to press too much fuel into the injectors, which will cause them to malfunction and you will eventually need another repair service. As you can see, the pressure regulator plays a vital role in the common rail diesel injection system.
The Suction Control Valve 294200-0370 is generally installed at the inlet of the high-pressure fuel pump. It is a proportional solenoid valve, controlled by the electronic control unit (ECU), which can control the amount of oil entering the high-pressure fuel pump, thereby controlling the oil pressure in the common rail pipe. The good work of this component can not only ensure that the vehicle can run normally but also enable the engine to run in the most fuel-efficient state to achieve the effect of saving fuel.
More
Denso OEM Number: 294200-0370 2942000370 294200 0370 294200-0380 2942000380 294200 0380
Feul Pump Number 1: 294000-0462 294000-0493 294000-0571 294000-0573 294000-0612
Feul Pump Number 2: 294000-0460 294000-0490 294000-0570 294000-0294 294000-0681
Feul Pump Number 3: 294000-0610 294000-0680 294000-1290 294000-0822 2940000462 2940000493
Feul Pump Number 4:2940000571 2940000573 2940000612 2940000610 2940000680 2940000460
Feul Pump Number 5: 2940000490 2940000570 2940000294 2940000681 2940001290 2940000822
Feul Pump Number 6: 294000 0462 294000 0493 294000 0571 294000 0573 294000 0612
Feul Pump Number 7: 294000 0610 294000 0680 294000 0460 294000 0490 294000 0570
Feul Pump Number 8: 294000 0294 294000 0681 294000 1290 294000 0822
