Product Details:
|
| Part Number: | 14533496 | Part Name: | Fan Motor |
|---|---|---|---|
| Applicable: | Excavator | Model: | EC360 EC380 EC460 |
| Material: | Cast Iron | Size: | Standard |
| Condition: | 100% New | Availability: | In Stock |
| High Light: | 14533496 Hydraulic Fan Motor,EC360 Hydraulic Fan Motor,EC460 hydraulic motor fan |
||

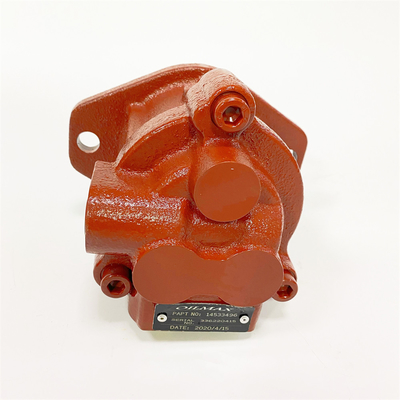

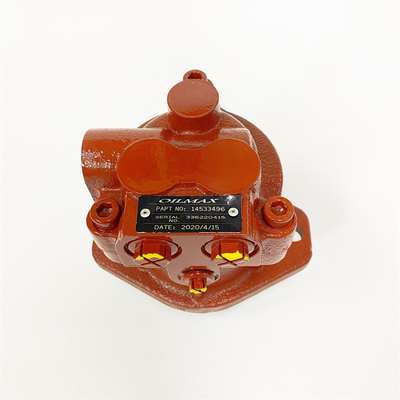

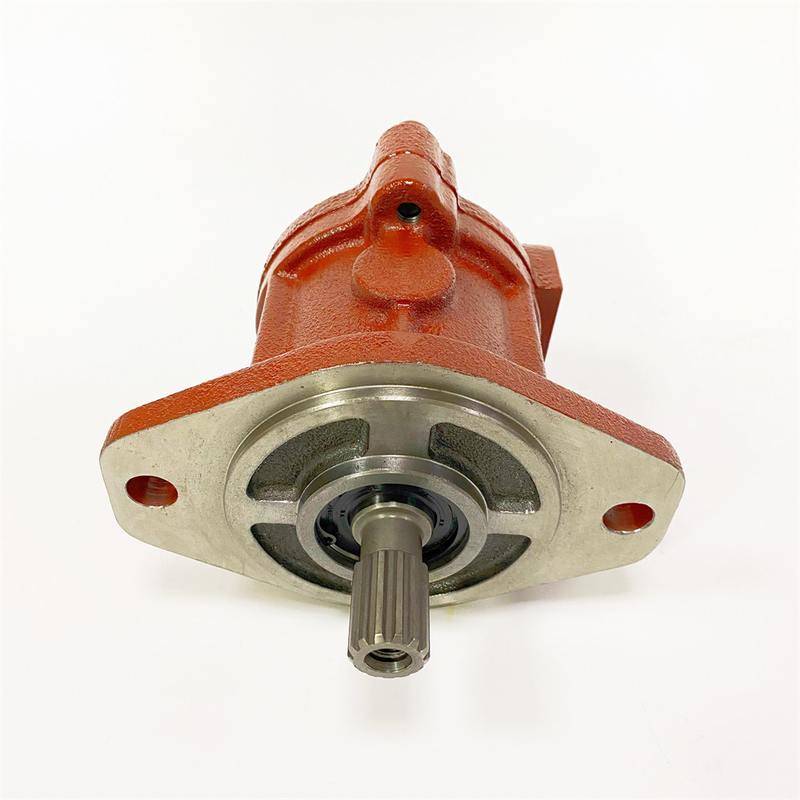

EC360 EC380 EC460 Hydraulic Fan Motor 14533496 Excavator Parts
Specifiion
| Part Number | 14533496 |
| Part Name | Fan Motor |
| Applicable | Excavator |
| Model | EC360 EC380 EC460 |
| Material | Cast iron |
| Size | Size |
| Condition | 100% new |
| Availability | In Stock |
Appliion Model
EC330B EC330C EC340D EC360B EC360C EC360CHR EC380D EC380DHR EC460B EC460C EC460CHR EC480D EC480DHR ECR145C ECR145D ECR145E PL4608 PL4611 PL4809D .Heavy
Parts Drawing
| Pos. | Part Number | Qty | Parts Name |
| VOE14533496 | [1] | Fan motor | |
| 1 | VOE14536003 | [1] | |
| 2 | VOE14537413 | [1] | Shaft |
| 3 | SA8230-33970 | [1] | Ball bearing |
| 4 | VOE14537414 | [1] | Seal |
| 5 | VOE14537415 | [1] | Plate |
| 6 | VOE14512771 | [1] | Pin |
| 7 | VOE14537417 | [1] | Cylinder Block |
| 8 | VOE14536007 | [1] | Block |
| 9 | VOE14536008 | [1] | Seat |
| 10 | VOE14536009 | [1] | Spring |
| 11 | VOE14536010 | [1] | Washer |
| 12 | VOE14512773 | [1] | Ring |
| 13 | VOE14536011 | [3] | Pin |
| 14 | VOE14536012 | [1] | Holder |
| 15 | VOE14536013 | [1] | Plate |
| 16 | VOE14536014 | [1] | Piston |
| 17 | VOE14536015 | [1] | Plate |
| 18 | VOE14536016 | [1] | Pin |
| 19 | VOE14536017 | [1] | Bearing |
| 20 | VOE14536018 | [1] | O-ring |
| 21 | SA8230-32410 | [1] | Pin |
| 22 | SA8230-33220 | [3] | Bolt |
| 23 | VOE14512772 | [1] | Ring |
| 24 | VOE14536020 | [1] | Non-return valve |
| 25 | VOE14536021 | [1] | Spring |
| 26 | VOE14536022 | [1] | Plug |
| 27 | VOE983505 | [1] | O-ring |
The Following Fan Motor Fan Pump Can Be Provided
325C Fan Pump 200-3406
325C Fan Motor 179-9778
330C Fan Pump 283-5992
330C Fan Motor 191-5611 / 194 / 8384
330D 336D Fan Pump 259-0815
330D 336D Fan Motor 234-4638
345 349 Fan Pump 295-9426
345 349 Fan Motor 295-9429
385B Fan Motor 200-3252
980H Fan Motor 266-8034
345CL Fan Motor 266-8034
345B Fan Pump 259-0814
345B Fan Motor 155-9107
