Product Details:
|
| Part Number: | VOE14541030 | Product Name: | Rotating Gearbox |
|---|---|---|---|
| Appliion: | Crawler Excavator | Process: | Heat Treatment |
| Material: | Casting | Colour: | Grey |
| Condition: | 100% New | Reference Weight: | 120KG |
| High Light: | EC460 Excavator Gear Parts,VOE14541030 Gearbox,EC480 Rotary Head Gearbox |
||

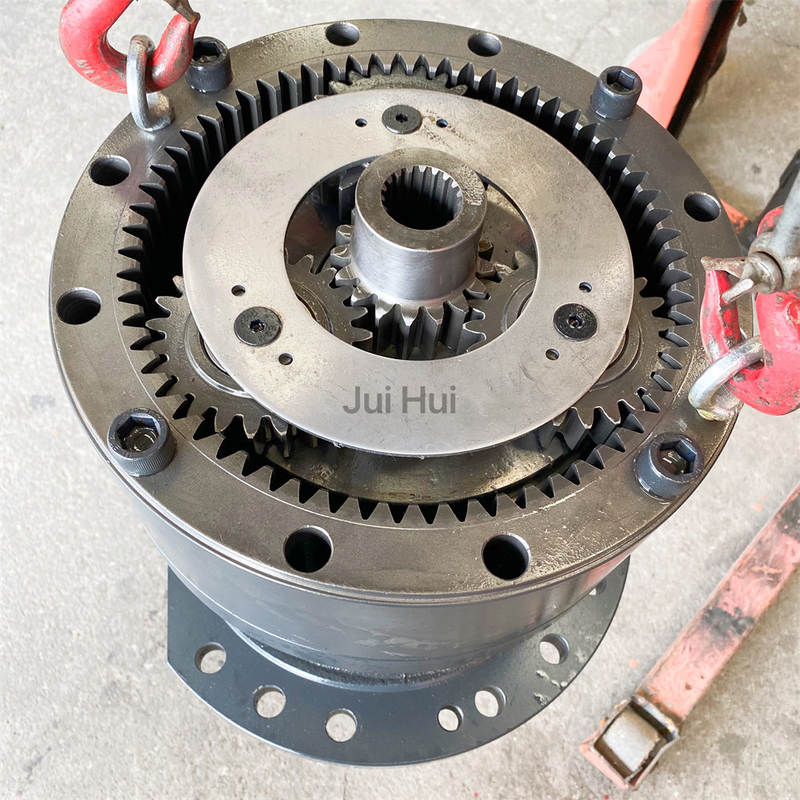

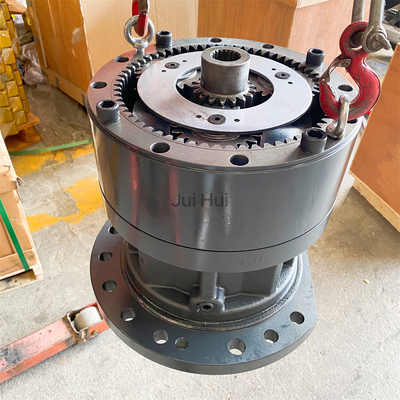

EC460 EC480 Excavator Gear Parts VOE14541030 Rotary Reducer
Specifiion
| Part Number | VOE14541030 |
| Product Name | Rotating Gearbox |
| Appliion | Crawler Excavator |
| Process | Heat Treatment |
| Material | Casting |
| Colour | Grey |
| Condition | 100% New |
| Reference Weight | 120KG |
| Size | Standard |
| Availability | In Stock |
Appliion
EC460B EC460C EC460CHR EC480D EC480DHR EC480E EC480EHR PL4608 PL4611 PL4809D PL4809E .Heavy
The slewing drive includes the following gear components: sun gear, planetary gears, needle bearings, roller bearings, brackets, pinion shafts, pinion gears, oil seals, ring gears, and slewing shells.
VOE14541030 Slewing Gear Box Related Parts
| Pos. | Part Number | Qty | Part Name |
| 1 | VOE14529015 | [1] | Valve |
| 2 | VOE14540404 | [1] | Shaft |
| 3 | VOE14540405 | [1] | Collar |
| 4 | VOE14509281 | [1] | Cover |
| 5 | VOE990596 | [1] | O-ring |
| 6 | VOE14508911 | [1] | Seal |
| 7 | VOE993025 | [10] | Hexagon screw |
| 8 | VOE14640027 | [1] | Roller bearing |
| 9 | VOE14558674 | [1] | Roller bearing |
| 10 | SA9541-01090 | [1] | Retaining ring |
| 11 | SA7118-30510 | [1] | |
| 12 | SA7118-30350 | [1] | Ring gear |
| 13 | VOE950677 | [4] | Pin |
| 14 | SA984363 | [12] | Bolt |
| 15 | SA7118-30370 | [1] | Plate |
| 16 | SA7118-30380 | [1] | Thrust ring |
| 17 | SA7118-30390 | [1] | Gear |
| 18 | SA7118-30480 | [1] | Washer |
| 19 | SA7118-30490 | [1] | Sun gear |
| 20 | SA7118-34510 | [1] | Adapter |
| 21 | SA7118-30200 | [1] | Planet carrier |
| 22 | SA7118-30230 | [3] | Pin |
| 23 | SA7118-30260 | [6] | Washer |
| 24 | SA9325-08010 | [3] | Spring pin |
| 25 | SA7118-30220 | [3] | Planetary gear |
| 26 | VOE14528725 | [1] | Planet carrier |
| 27 | VOE14528725 | [1] | Planet carrier |
| 28 | SA7118-30430 | [3] | Pin |
| 29 | VOE14528726 | [3] | Pin |
| 30 | VOE14550879 | [3] | Needle bearing |
| 31 | VOE14550879 | [3] | Needle bearing |
| 32 | SA7118-30450 | [3] | Washer |
| 33 | SA7118-30460 | [3] | Washer |
| 34 | SA9541-01042 | [3] | Retaining ring |
| 35 | SA9325-08010 | [3] | Spring pin |
| 36 | SA7118-30410 | [1] | Planet carrier |
| 37 | SA7118-30420 | [3] | Planetary gear |
| 38 | VOE14526214 | [1] | Overhaul kit |
