Product Details:
|
| Part Number: | 31Q6-10141 31Q6-10140 | Applicable Model: | R220LC-9S |
|---|---|---|---|
| Product Name: | Swing Reduction Gear | Appliion: | Hyundai Excavator |
| Size: | OEM Size | Material: | High Strength Cast Iron |
| Condition: | 100% New | Shipment: | By Sea, By Air, By Express Or As Required |
| High Light: | R220LC-9S Rotary Reducer,31Q6-10140 Rotary Reducer,Hyundai Rotary Reducer |
||

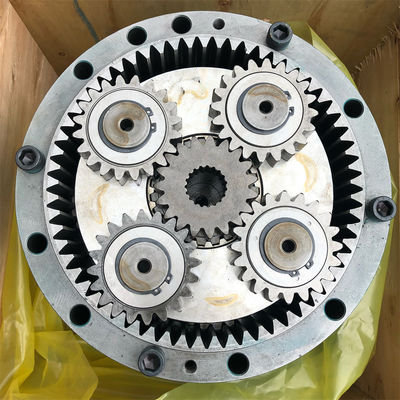

R210LC-9 R220LC-9S Rotary Reducer 31Q6-10140 31Q6-10141 Hyundai
Specifiion
| Applicable Model | R160LC-9 R210LC-9 R220LC-9S |
| Product Name | Swing Reduction Gear |
| Appliion | Hyundai Excavator |
| Material | High Strength Cast Iron |
| Part Number | 31Q6-10141 31Q6-10140 |
| Color | Black |
| Condition | 100% New |
| Size | Standard |
| Reference Weight | 180 kg |
| Availability | In Stock |
Swing Reduction Gear Parts
1. XKAQ-00771/XKAQ-00962 [1] Housing
2. XKAQ-00403/XKAQ-00780 [1] Shaft drive
3. XKAQ-00018 [1] Gasket
4. XKAQ-00026 [1] Bearing-Roller
5. XKAQ-00032 [1] Sealing oil
6. XKAQ-00029 [1] Bearing roller
6. XKAQ-00961 [1] Bearing-Roller
7. XKAQ-00404 [1] Plate thrust
8. XKAQ-00753 [1] Carrier Assembly 2
9. XKAQ-00075 [1] Carrier 2
10. XKAQ-00023 [3] Gear planet 2
11. XKAQ-00643 [3] Pin Assembly 2
12. XKAQ-00070 [3] Pin 2
13. XKAQ-00291 [1] Bushing 2
14. XKAQ-00071 [6] Washer thrust
15. XKAQ-00048 [3] Pin spring
16. XKAQ-00755 [1] Gear-Sun 2
17. XKAQ-00754 [1] Carrier Assembly 1
18. XKAQ-00531 [1] Carrier 1
19. XKAQ-00025 [3] Gear planet 1
20. XKAQ-00415 [3] Pin 1
21. XKAQ-00030 [3] Cage Needle
22. XKAQ-00057 [3] Board 1
23. XKAQ-00040 [3] Panel 2
24. XKAQ-00041 [3] Ring stop
25. XKAQ-00010 [1] Gear-Sun 1
26. XKAQ-00534 [1] Panel 3
27. XKAQ-00529 [1] Ring gear
28. XKAQ-00977 [1] Pinion
29. XKAQ-00074 [1] Ring stop
30. XKAQ-00072 [2] PIN-KNOCK
31. XKAQ-00065 [12] Bolt socket
32. XKAQ-00031 [1] Board cover
33. XKAQ-00064 [8] Bolt - Hex
34. XKAQ-00043 [1] Board lock
35. XKAQ-00042 [2] Bolt - Hex
36. XKAQ-00292 [1] Washer lock
Our Range Of Services
1. Electrical components: ECU, control panel, valve assembly EGR, SCV valve, sensor, solenoid valve, starter motor...
2. Engine parts: alternator assembly, fuel pump, Hino nozzle/injector, turbocharger, water pump, oil filter element, cylinder liner and piston, common rail, connecting rod, gasket kit, crankshaft bearing, crankshaft , cylinder liner, camshaft, oil cooler cover, cylinder gasket, fuel injection pump, intake manifold...
3. Hydraulic components: gear pump, plunger, regulator, cylinder block/main pump, hydraulic pump, swing motor, pilot valve, oil filter element, control valve...
4. Chassis components: drive wheels, roller tracks, idlers, load-bearing rollers, tracks, track shoes, adjusters...
In conclusion, all excavator replacement parts are available at Junhui Construction Machinery Co., Ltd. Our technology and team can provide you with the best procurement and logistics services. Welcome to visit and consult!
Our Advantage
1. Very competitive price
2.Completely interchangeable with the original
3. For excavators or construction machinery
4. Low noise, high efficiency, high reliability, long life
5. Accept product orders customized according to your drawings or technical specifiions.
6. The products are of high quality. Every product must pass the strict inspection of our QC and engineers.
